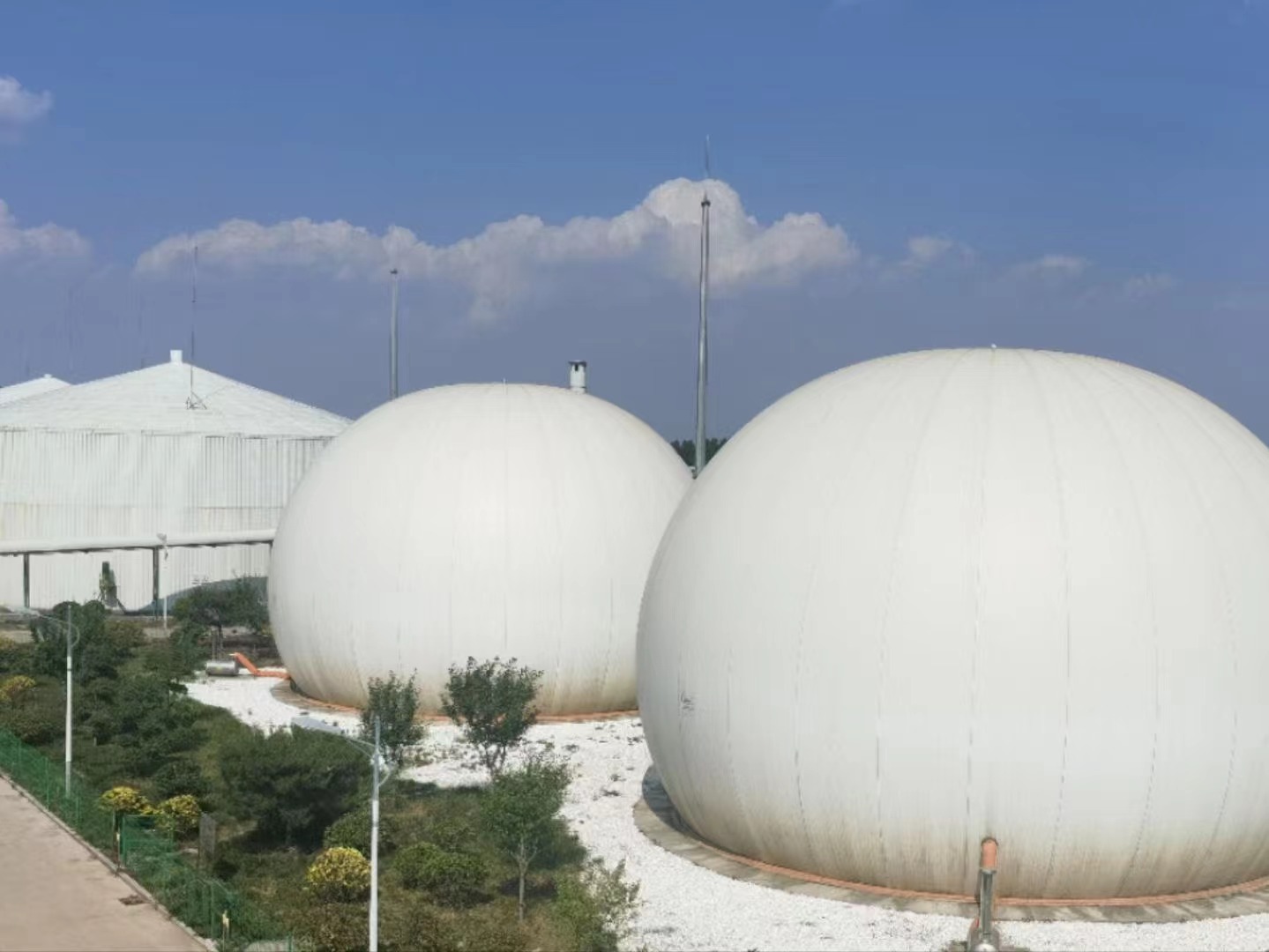

Product Description
With Inner and outer membrane, level measurement system, leakage detection system, intermittent gas supply system, etc.
Membrane material: Service life will be 15-20 years.
Level determination system: Ultrasound or radar Level detectors.
Leakage detection system: Install a leakage detector with sound and light alarms.
Intermittent gas supply system: Control system consists of a gas cabinet fan, electric butterfly valve, manual butterfly valve, automatic pressure switch, pressure reducing valve and pressure gauge to automatically adjust the inner and outer membrane pressure.
Technical Features
(1) Safe and reliable, fully compliance with international standards and industry requirements.
(2) Applicable temperature from -40°C to +70°C, anti-wind, anti-snow and anti-earthquake.
(3) Anti-icing and no need heating.
(4) Short construction period.
(5) Light weight, which greatly simplifies and saves the construction cost of the base.
(6) Constant output gas pressure, large input/output flow rate and widely used in many fields.
Application Fields
(1) Recycle and storage biogas from Livestock and poultry farms, water treatment plants and garbage disposal sites.
(2) Storage low-pressure corrosive gases, used in the chemical industry.
(3) Storage low-pressure gas, used in refining and metallurgy fields (below 2000m3).
(4) Storage gas used for environmental protection and water treatment projects.

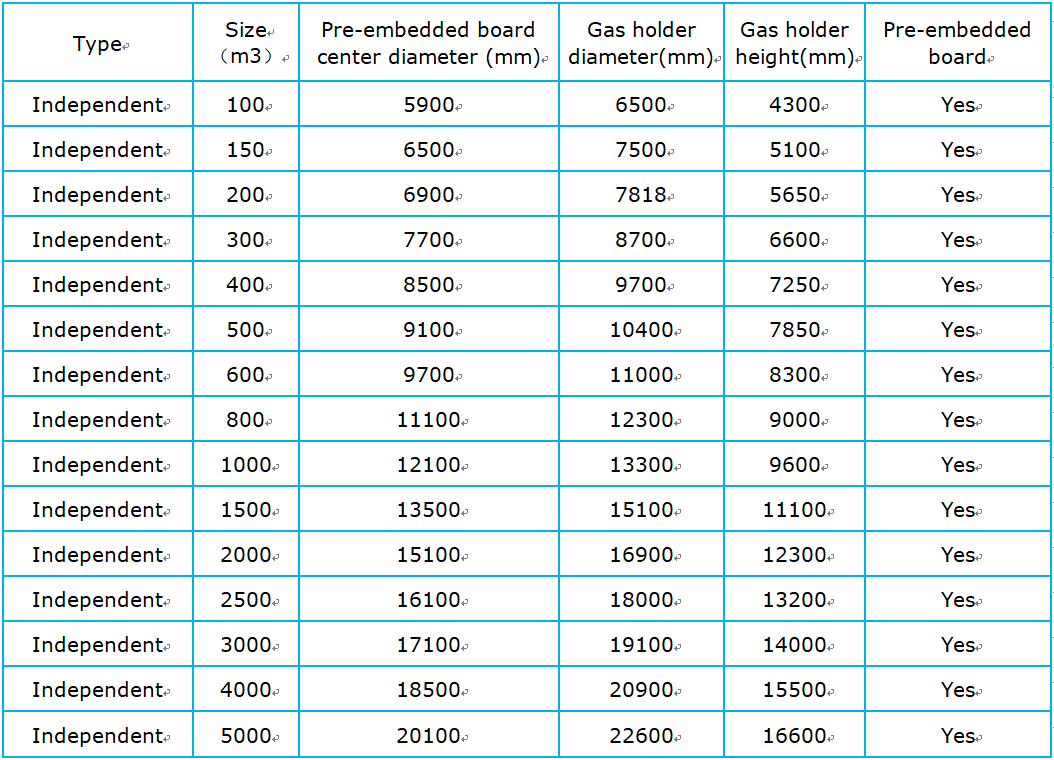

Product Specifications
